# How do I route my PCV system?

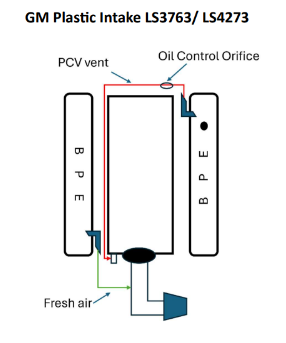

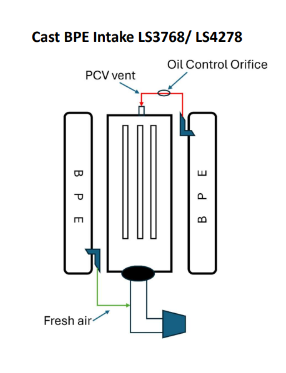

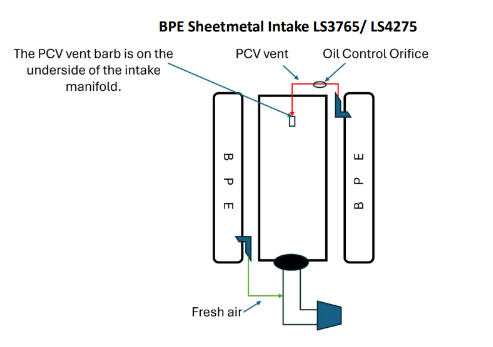

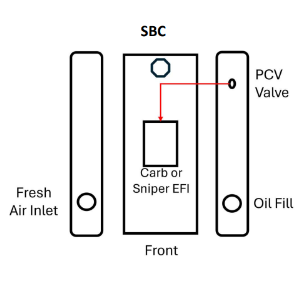

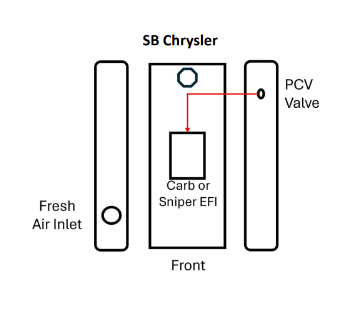

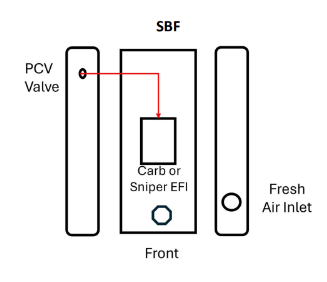

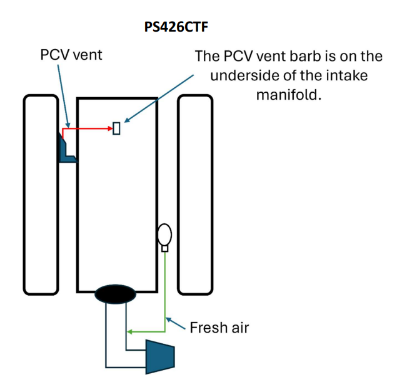

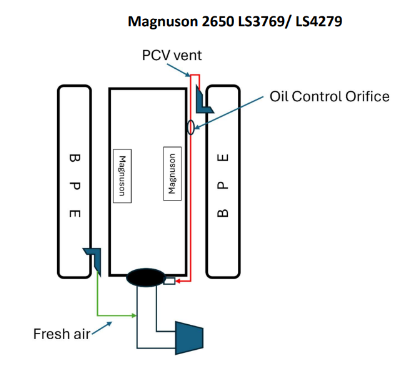

## Please refer to the diagrams below to ensure you have the PCV System routed properly for your BluePrint Engine:

![](https://knowledgebase.blueprintengines.com/hs-fs/hubfs/image-png-Nov-20-2025-09-14-42-8812-PM.png?width=305&height=292&name=image-png-Nov-20-2025-09-14-42-8812-PM.png)

   ![](https://knowledgebase.blueprintengines.com/hs-fs/hubfs/image-png-Nov-20-2025-09-15-04-4330-PM.png?width=327&height=282&name=image-png-Nov-20-2025-09-15-04-4330-PM.png)



![](https://knowledgebase.blueprintengines.com/hs-fs/hubfs/image-png-Nov-20-2025-09-16-54-5415-PM.png?width=360&height=322&name=image-png-Nov-20-2025-09-16-54-5415-PM.png)



![](https://knowledgebase.blueprintengines.com/hs-fs/hubfs/image-png-Nov-20-2025-09-19-19-2372-PM.png?width=286&height=343&name=image-png-Nov-20-2025-09-19-19-2372-PM.png)



![](https://knowledgebase.blueprintengines.com/hs-fs/hubfs/image-png-Nov-20-2025-09-20-02-4157-PM.png?width=493&height=347&name=image-png-Nov-20-2025-09-20-02-4157-PM.png)



![](https://knowledgebase.blueprintengines.com/hs-fs/hubfs/image-png-Nov-20-2025-09-18-26-8791-PM.png?width=286&height=373&name=image-png-Nov-20-2025-09-18-26-8791-PM.png)



![](https://knowledgebase.blueprintengines.com/hs-fs/hubfs/image-png-Nov-20-2025-09-20-50-8314-PM.png?width=410&height=378&name=image-png-Nov-20-2025-09-20-50-8314-PM.png)



![](https://knowledgebase.blueprintengines.com/hs-fs/hubfs/image-png-Nov-20-2025-09-21-20-1373-PM.png?width=393&height=381&name=image-png-Nov-20-2025-09-21-20-1373-PM.png)
