      What size of bellhousing bolt for your BluePrint Cast Iron LS Block?

      Bellhousing bolts are a 10mm x 1.5 thread

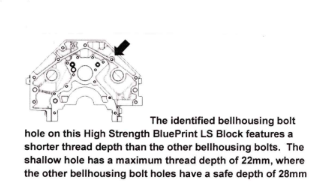

      All bellhousing bolt holes are a 28mm depth with the exception of one bolt hole pictured below that is 22mm:
